HELPING HAND BRACKETS
Cladmate Helping Hand brackets
Discover the Versatility of A1 fire-rated Fortis Helping Hand Brackets. Our Fortis Helping Hand Brackets come in single and double options, with lengths to suit your project's unique needs. Standard thermal isolators are included with the brackets, and for even better thermal performance, explore our Ecopad thermal isolators.
Regarding bracket and profile configuration, our Cladmate Technical Department is here to assist you. Whether you have questions or need guidance, visit our Project Builder or contact us at technical@cladmate.co.uk.

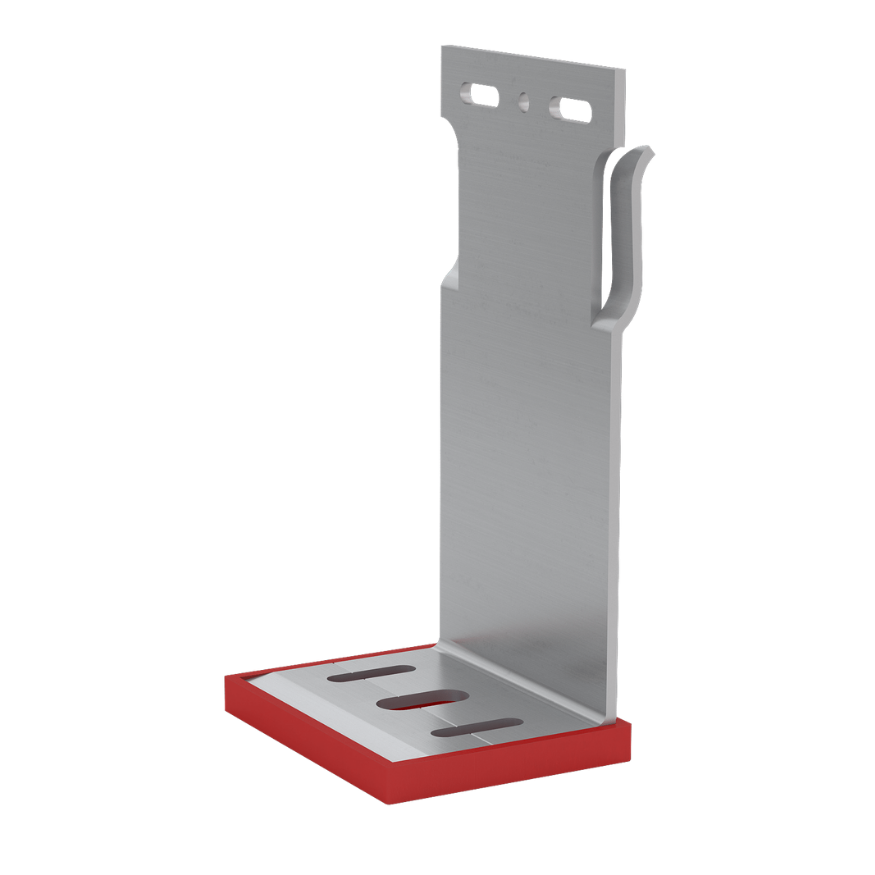

Fortis Single Helping Hand Brackets

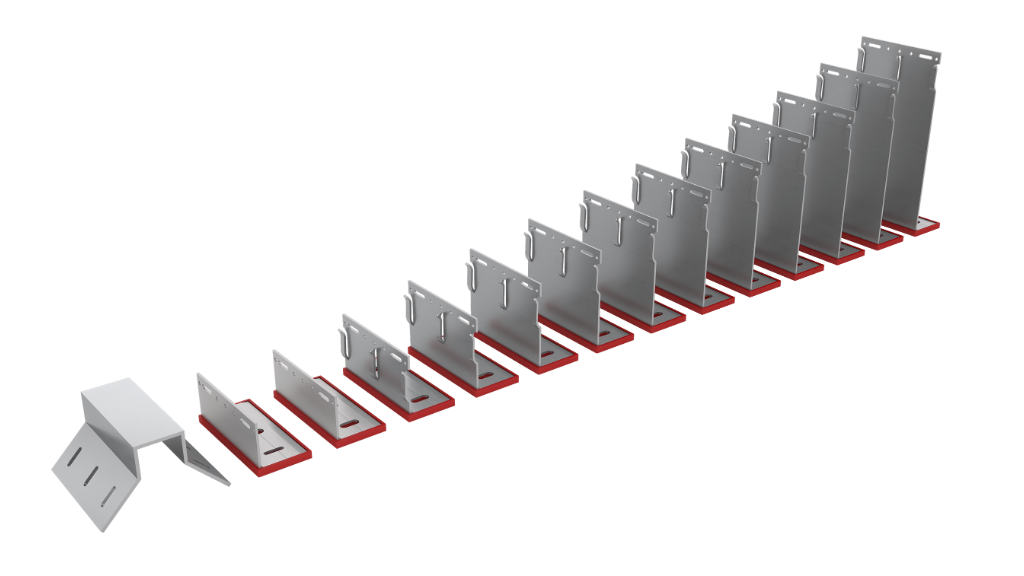

Fortis Single Helping Hand Brackets are available in sizes from 40mm to 300mm.
| Size / Specification | Product Code | Description |
|---|---|---|
| 40mm | CMF-SB40-UN | - |
| 60mm | CMF-SB60-UN | - |
| 80mm | CMF-SB80-UN | - |
| 100mm | CMF-SB100-UN | - |
| 120mm | CMF-SB120-UN | - |
| 140mm | CMF-SB140-UN | - |
| 160mm | CMF-SB160-UN | - |
| 180mm | CMF-SB180-UN | - |
| 200mm | CMF-SB200-UN | - |
| 220mm | CMF-SB220-UN | - |
| 240mm | CMF-SB240-UN | - |
| 270mm | CMF-SB270-UN | - |
| 300mm | CMF-SB300-UN | - |

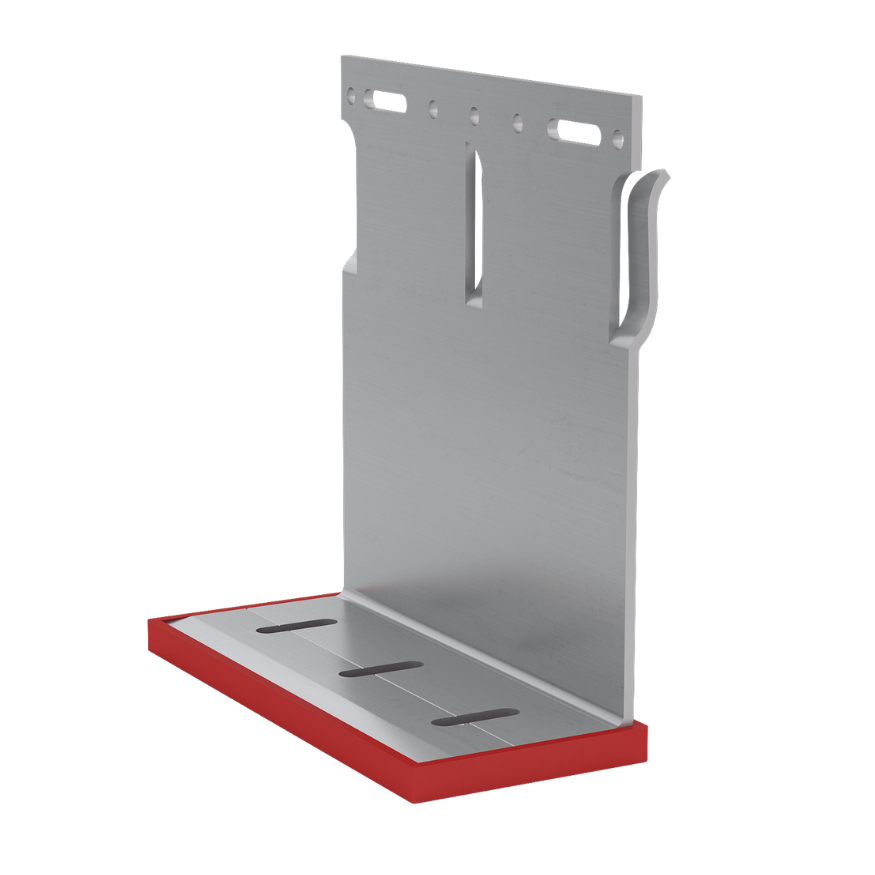

Fortis Double Helping Hand Brackets
Fortis Double Helping Hand Brackets are available in sizes from 40mm to 300mm and come in two different bracket bases depending on the type of the substrate.
| Size / Specification | Product Code | Description |
|---|---|---|
| 40mm | CMF-DB40-6.5 | CMF-DB40-11 |
| 60mm | CMF-DB60-6.5 | CMF-DB60-11 |
| 80mm | CMF-DB80-6.5 | CMF-DB80-11 |
| 100mm | CMF-DB100-6.5 | CMF-DB100-11 |
| 120mm | CMF-DB120-6.5 | CMF-DB120-11 |
| 140mm | CMF-DB140-6.5 | CMF-DB140-11 |
| 160mm | CMF-DB160-6.5 | CMF-DB160-11 |
| 180mm | CMF-DB180-6.5 | CMF-DB180-11 |
| 200mm | CMF-DB200-6.5 | CMF-DB200-11 |
| 220mm | CMF-DB220-6.5 | CMF-DB220-11 |
| 240mm | CMF-DB240-6.5 | CMF-DB240-11 |
| 270mm | CMF-DB270-6.5 | CMF-DB270-11 |
| 300mm | CMF-DB300-6.5 | CMF-DB300-11 |

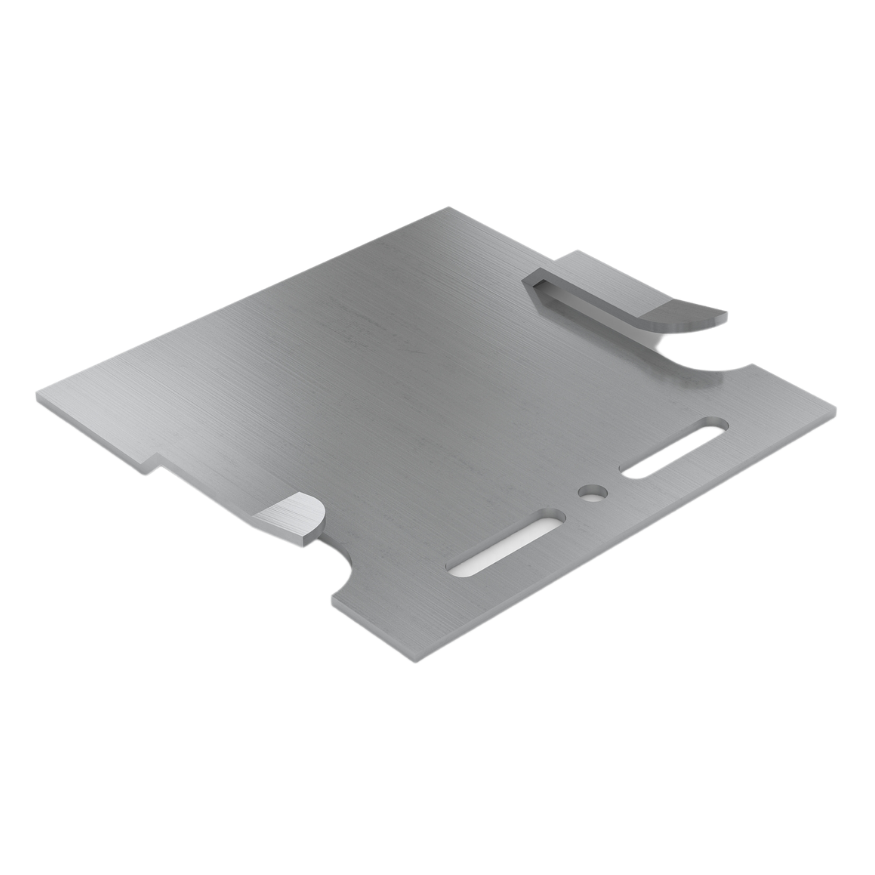

Extension Brackets
Extension Brackets helps to achieve Fortis Helping Hand Brackets to extend up to 80mm further.
| Size / Specification | Product Code | Description |
|---|---|---|
| Single Bracket Extension | CMF-SBEX | Single Bracket Extension Piece |
| Double Bracket Extension | CMF-DBEX | Double Bracket Extension Piece |

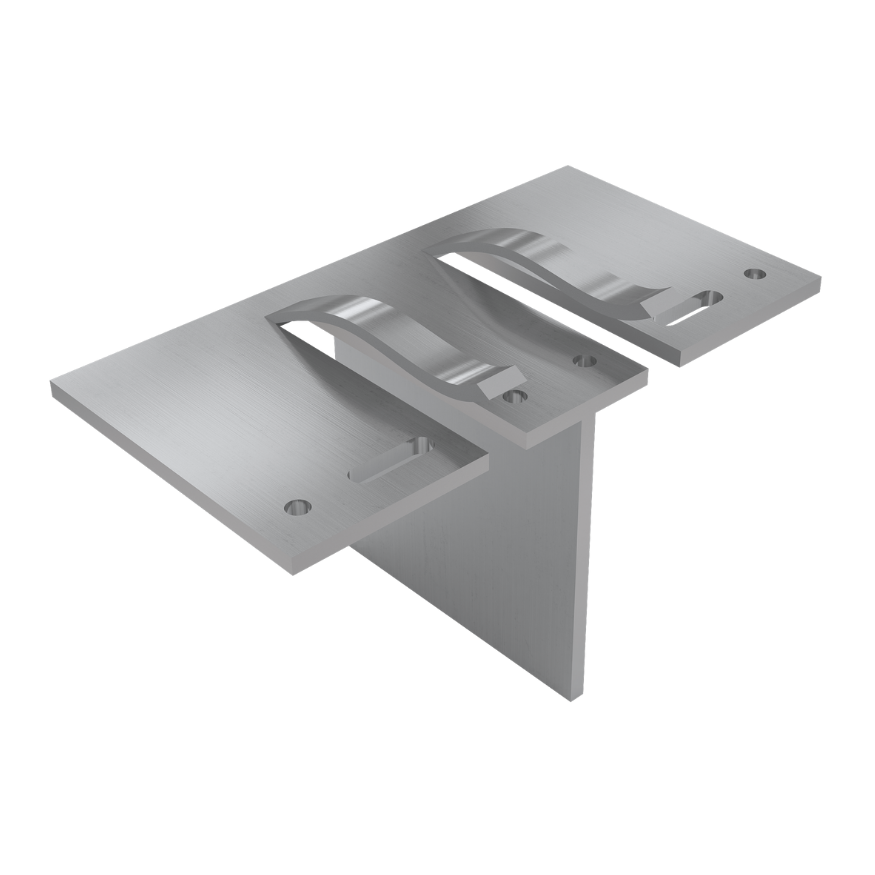

Vertical to Horizontal Adaptor
Vertical to Horizontal Adaptor allows Fortis Helping Hand Brackets to receive L & T rails horizontally.
| Size / Specification | Product Code | Description |
|---|---|---|
| V2H Adaptor | CMF-V2HA | Vertical to Horizontal Adaptor |

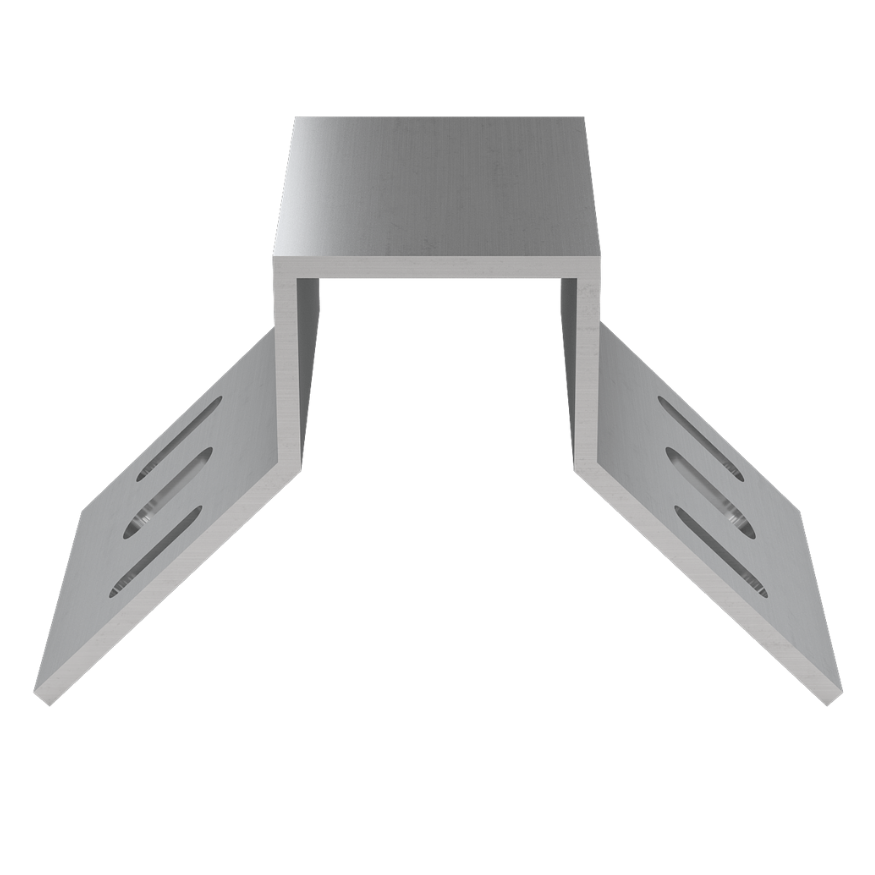

Corner Bracket Holder
Corner Bracket Holder is used for the external corner applications of the buildings.
| Size / Specification | Product Code | Description |
|---|---|---|
| Single Corner Bracket | CMB48-48-80 | Single Corner Bracket |
| Double Corner Bracket | CMB48-48-150 | Double Corner Bracket |
