FIXINGS
Cladmate Fixings
Cladmate offers an extensive range of cladding fixing solutions, including carbon steel, stainless steel, and 316 stainless steel options, all meticulously designed to meet the diverse needs of virtually any application. Our comprehensive range is well-suited for all built-up systems.
Our fixing and cladding solutions are versatile and suitable for various applications. You can confidently rely on Cladmate to deliver the perfect cladding fixing solution for your project, regardless of the specifications or requirements.
Fasteners Range

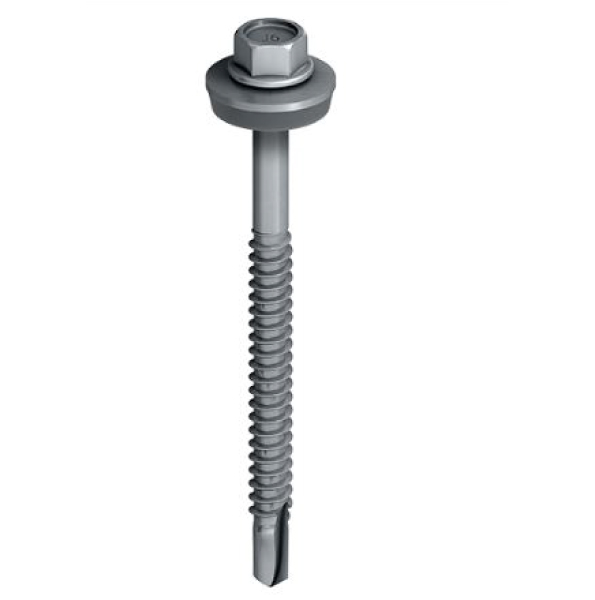

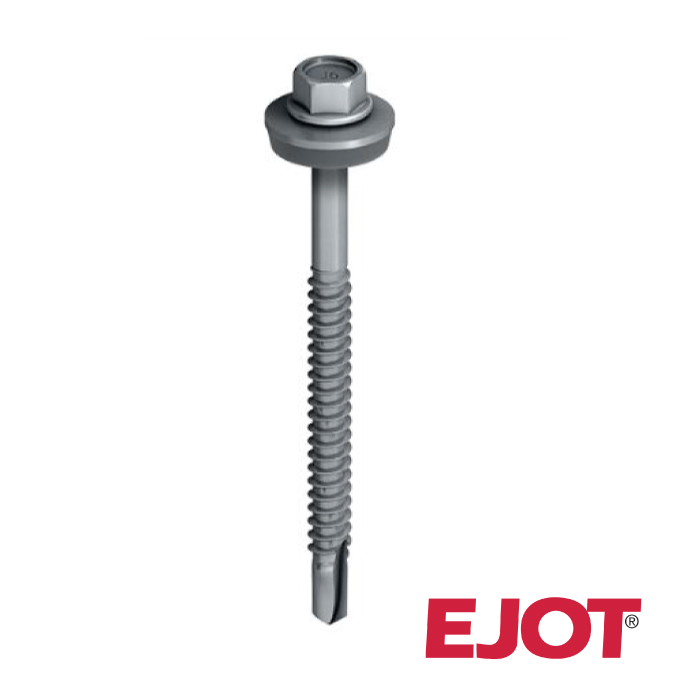

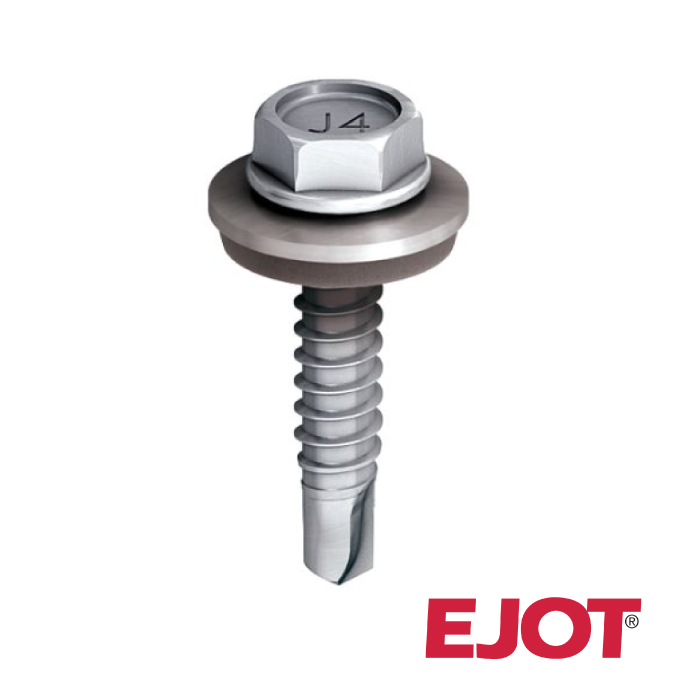

Self-drilling Screw
JT6-6-5.5X35
Self-drilling Screw
Applications
Especially suited for fixing cladding sheets to medium sections.
Properties
Stainless Steel A4 Bi-Met Self-Drilling fastener
Steel sections from 1.2mm to 6.0mm in thickness.
Technical specifications
Drive: 8mm clip hex one piece socket
Steel sections from 1.2mm to 6.0mm in thickness.

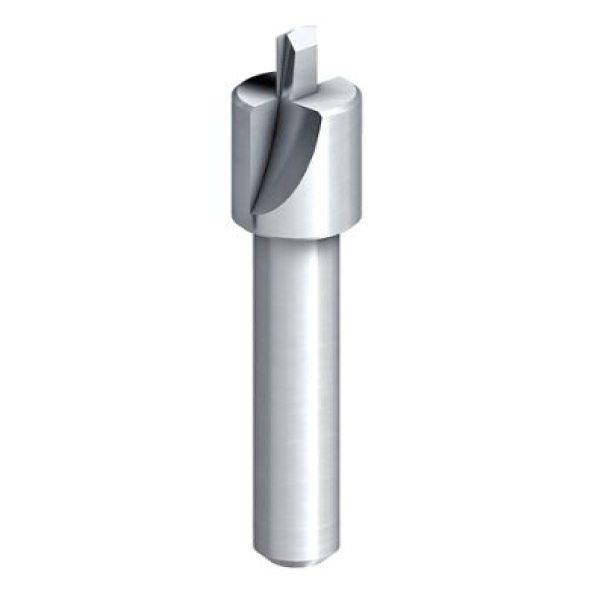

PTS Stop Drill
PTS-4.9-x-5.5
PTS Stop Drill
Applications
Especially suited for Stop drill to suit EJOT PTS fastener for secret fix brackets for 8mm & 10mm HPL boards
Properties
Made from A4 Stainless steel
Technical specifications
The Stop Drill pilots a 4.9mm diameter hole
Length of Stop Drill is depth of hole
Stop drill 4.9 x 5.5 suits the PTS 60 x 9.5

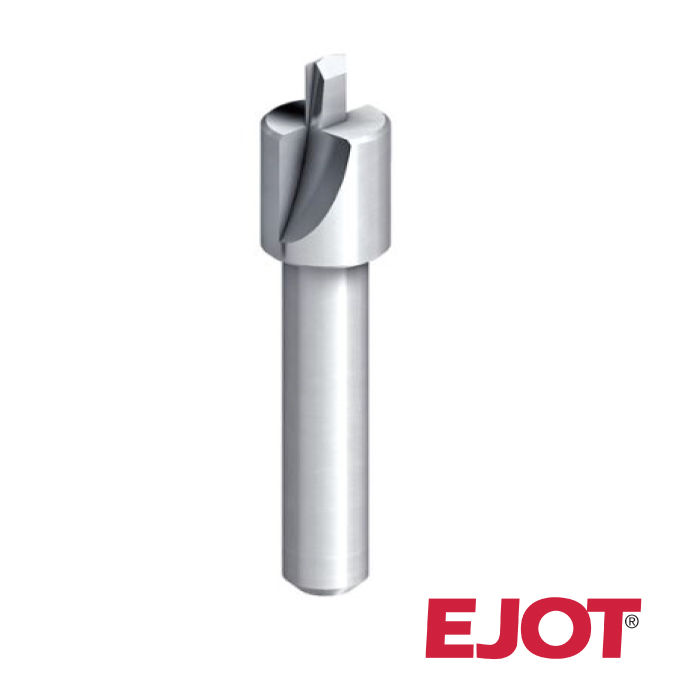

PTS Stop Drill
PTS-4.9-x-7.5
PTS Stop Drill
Applications
Especially suited for Stop drill to suit EJOT PTS fastener for secret fix brackets for 8mm & 10mm HPL boards
Properties
Made from A4 Stainless steel
Technical specifications
The Stop Drill pilots a 4.9mm diameter hole
Length of Stop Drill is depth of hole
Stop drill 4.9 x 7.5 suits the PTS 60 x 11.5

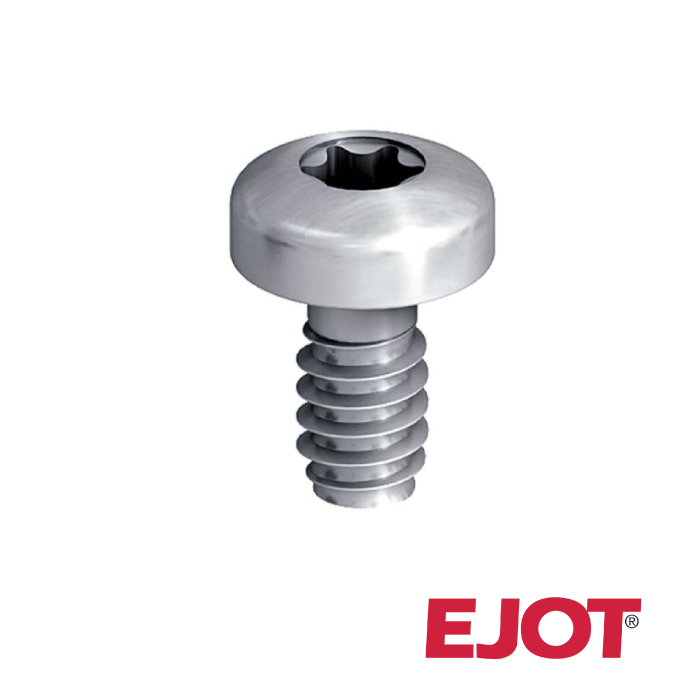

PTS 6.0
PTS-6.0-9.5
PTS 6.0
Applications
Especially suited for fixing of brackets to high pressure laminate facades boards
Properties
Fully A4 stainless steel
Technical specifications
Drive : Tx30
For installation guide see downloads

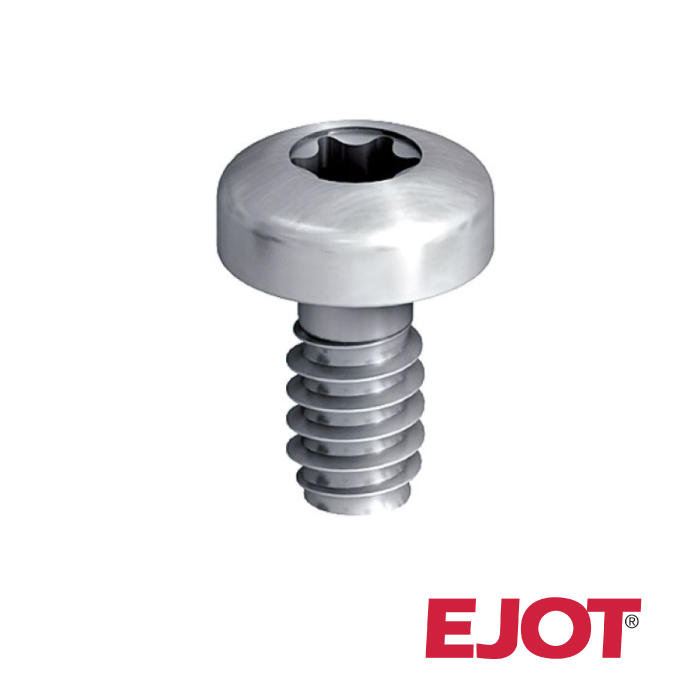

PTS 6.0
PTS-6.0-11.5
PTS 6.0
Applications
Especially suited for fixing of brackets to high pressure laminate facades boards
Properties
Fully A4 stainless steel
Technical specifications
Drive : Tx30
For installation guide see downloads

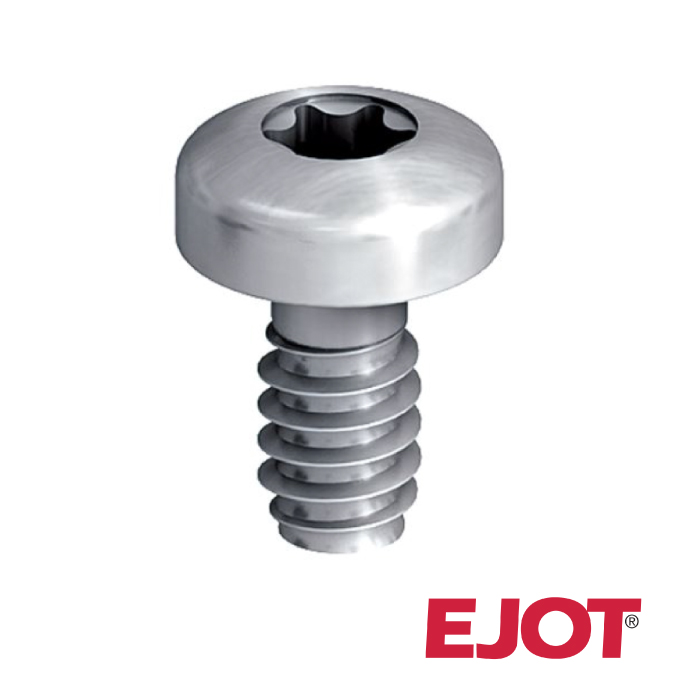

PTS 6.0
PTS-6.0-14.5
PTS 6.0
Applications
Especially suited for fixing of brackets to high pressure laminate facades boards
Properties
Fully A4 stainless steel
Technical specifications
Drive : Tx30
For installation guide see downloads

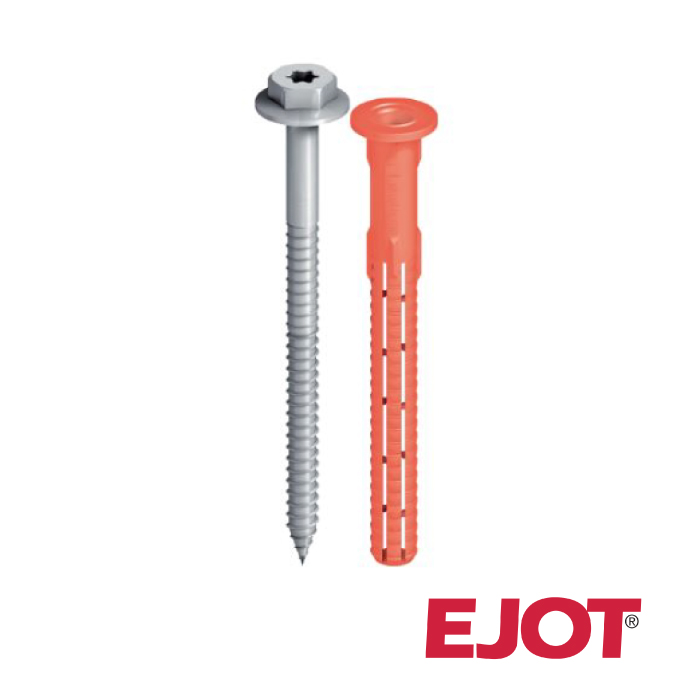

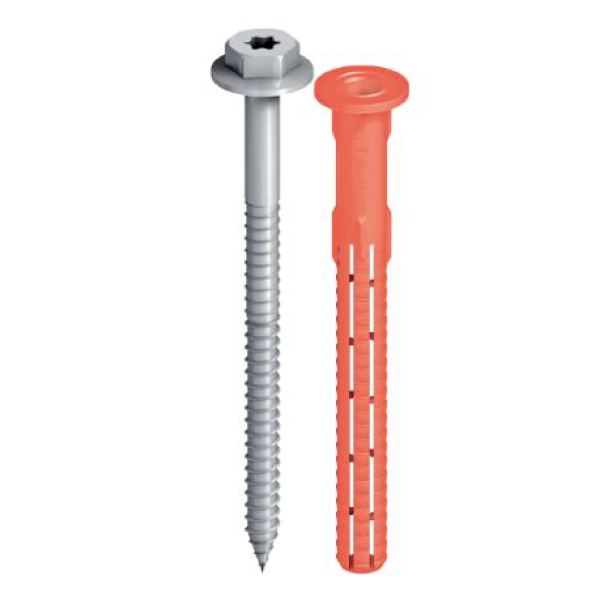

Universal Anchor
SDF KB 10H x 80E
Universal Anchor
Applications
Especially suited for fixing bracket to solid concrete, blockwork and brick
This anchor is also designed for lightweight concrete and perforated brickwork
Properties
Available in zinc plated carbon steel or A4 Stainless steel set screw both used with a with nylon plug
Technical specifications
Drive : 13mm One Piece Socket or Torx 40.
Anchor with a minimum embedment depth of 70 mm
10mm pilot hole
This product has a Euopean technical approval (ETA)

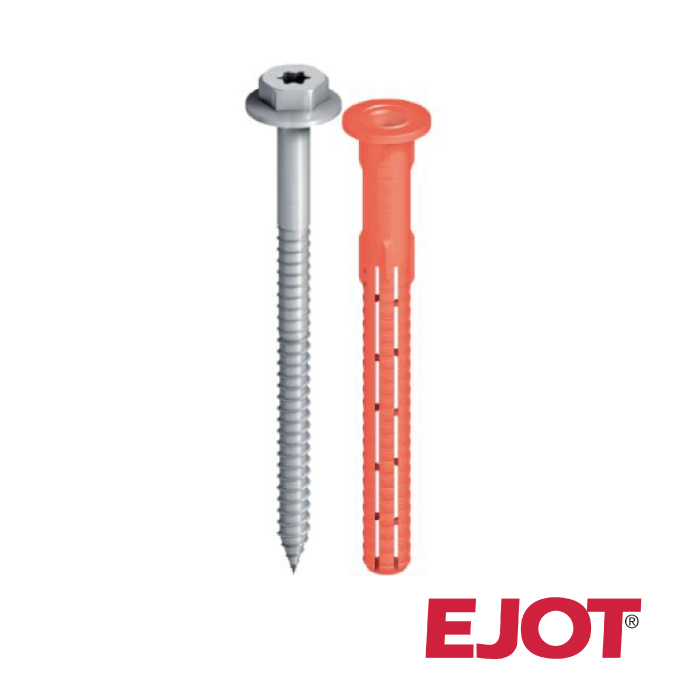

Universal Anchor
SDF KB 10H x 100E
Universal Anchor
Applications
Especially suited for fixing bracket to solid concrete, blockwork and brick
This anchor is also designed for lightweight concrete and perforated brickwork
Properties
Available in zinc plated carbon steel or A4 Stainless steel set screw both used with a with nylon plug
Technical specifications
Drive : 13mm One Piece Socket or Torx 40.
Anchor with a minimum embedment depth of 70 mm
10mm pilot hole
This product has a Euopean technical approval (ETA)

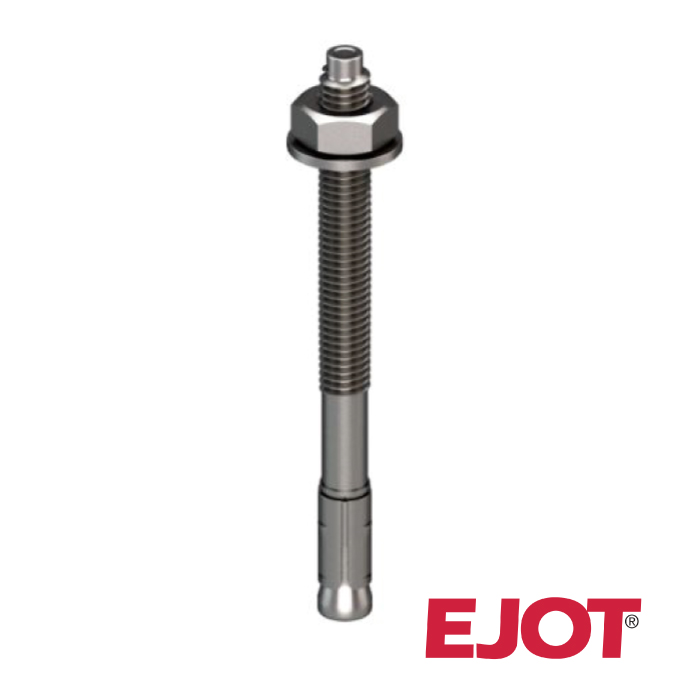

BA-E
BA-E-1010
BA-E
Applications
Especially suited for fixing bracket to Torque Controlled Expansion Anchor for push through installations , punch bolt head prevents thread destruction , active Knurls ensuring a good grip and quick tightening of the anchor , cracked and non cracked concrete.
Properties
Steel Structures, Colum Base Plates, Seatings, Barriers, Handrails, Ladders, Façade Systems
Stainless Steel A4

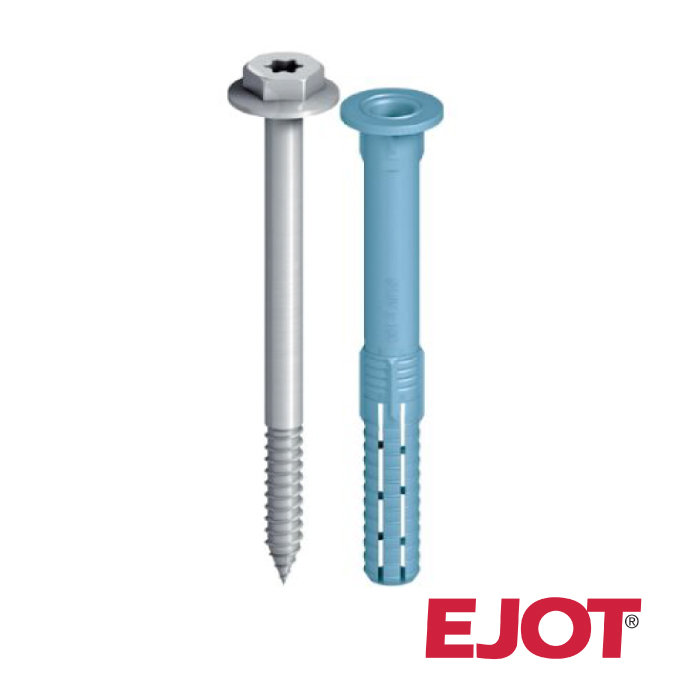

Facade Anchor
SDF-KB-10V-60E
Facade Anchor
Applications
Especially suited for fixing bracket to solid concrete, blockwork and brick
Properties
Available in zinc plated carbon steel or A4 Stainless steel set screw both used with a with nylon plug
Technical specifications
Drive : 13mm Hex One Piece Socket or Torx 40.
Anchor with an embedment depth of 40 mm in concrete
Embedment in masonry 50 mm
10mm pilot hole
This product has a Euopean technical approval (ETA)

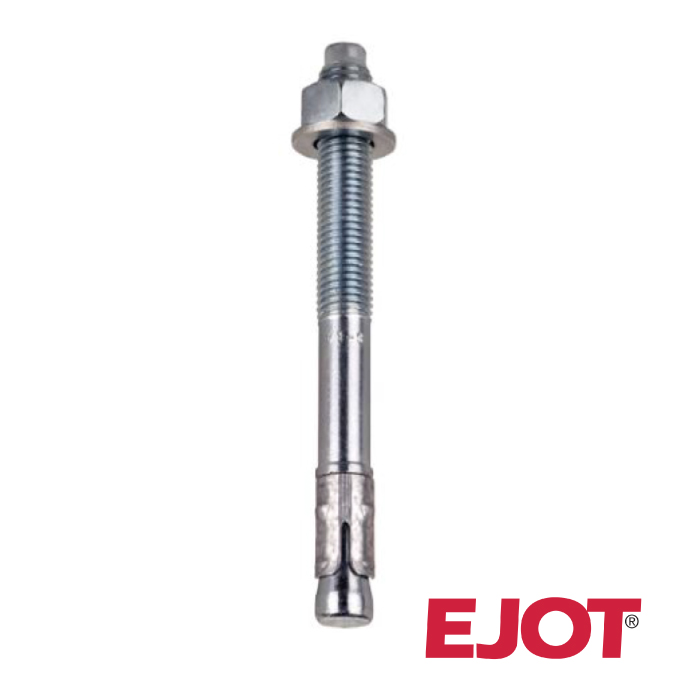

BA-V Through Bolts
BA-V-1010
BA-V Through Bolts
Applications
Especially suited for fixing bracket to Steel structures, Column base plates, Seatings, Barriers, Handrails.
Properties
Option 1 approval.
Punch bolt head prevents thread destruction.
Technical specifications
Torque controlled expansion anchor for push through installations, active knurls ensuring a good grip and quick tightening of the anchor

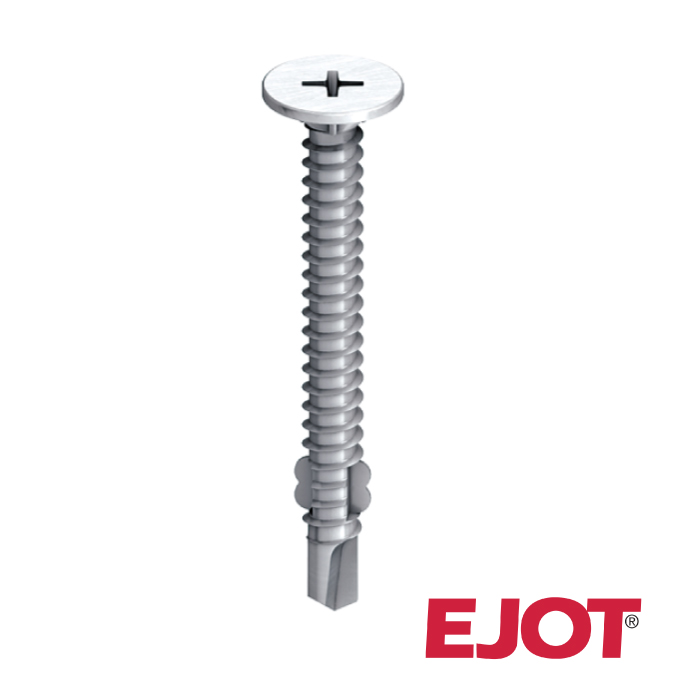

TBF 4.8
TBF 4.8 x 30
TBF 4.8
Applications
Especially suited for fixing Timber battens to steel sections 2 x 0.7mm to 3.0mm
Cement particle board to steel sections 0.9mm to 3.0mm
Sheathing boards OSB/Plywood to steel sections 0.9mm to 3.0mm
Properties
Carbon Steel with organic corrosion resistant finish
Unwashered
Technical specifications
Drive: P2
Steel sections from 0.7 to 3.0mm in thickness

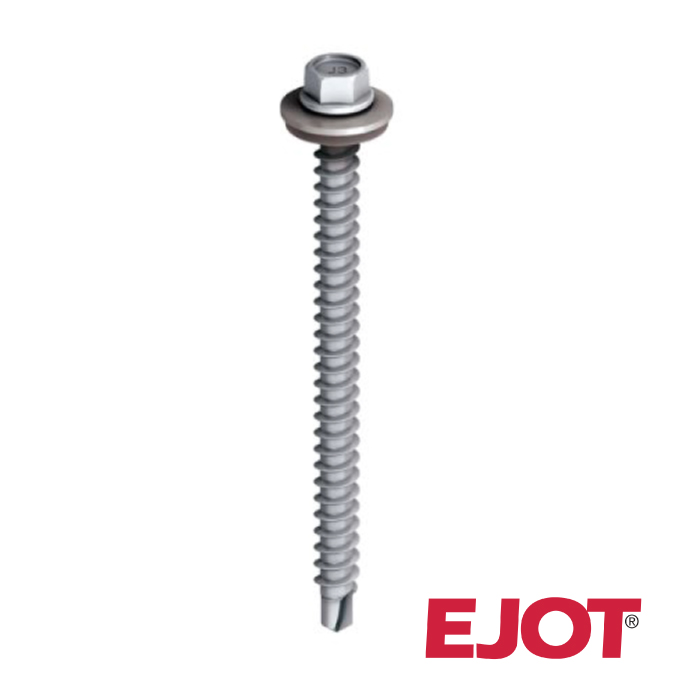

Self-Drilling Screw
JT3 2 6.5 x 65 S16
Self-Drilling Screw
Applications
Especially suited for fixing bracket to timber sections
Properties
A2 Austenitic Stainless Steel fastener with Carbon steel drill point
Available unwashered
Technical specifications
Drive: 8mm clip hex one piece socket
Steel sections up to 2mm in thickness

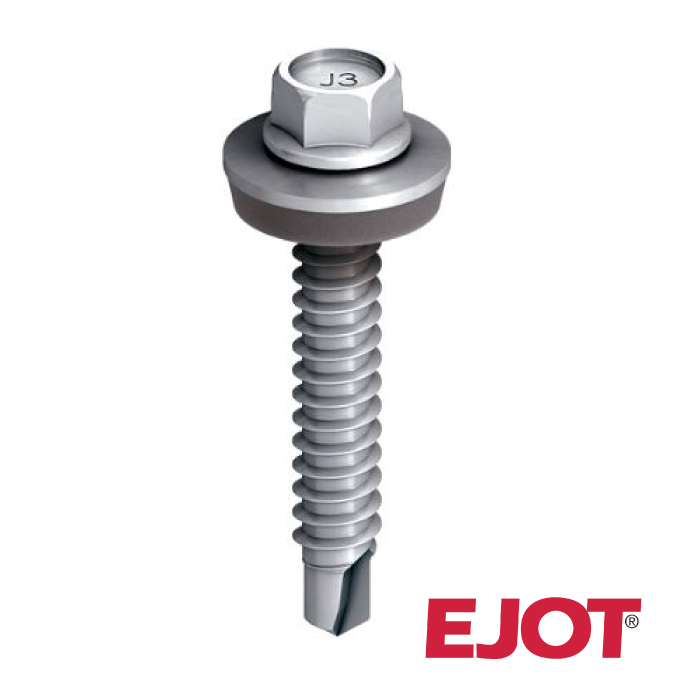

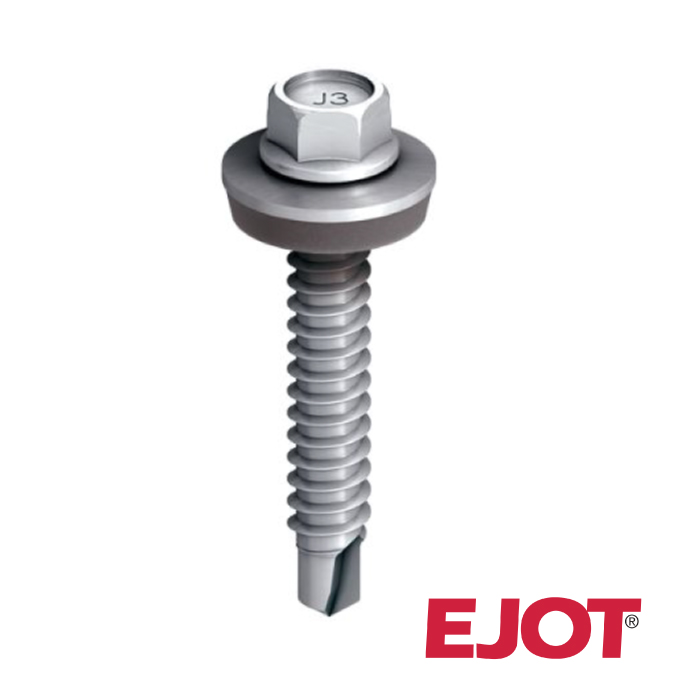

JT3 3 6.3
JT3 3 6.3 x 50 S16
JT3 3 6.3
Applications
Especially suited for fixing bracket to timber sections
Properties
A2 Austenitic Stainless Steel fastener with Carbon steel drill point
Available unwashered
Technical specifications
Drive: 8mm clip hex one piece socket
Steel sections from 1.2 to 3.0mm in thickness
JT3 3 6.3
JT3 3 6.3 x 38 S16
JT3 3 6.3
Applications
Especially suited for fixing bracket to timber sections
Properties
A2 Austenitic Stainless Steel fastener with Carbon steel drill point
Available unwashered
Technical specifications
Drive: 8mm clip hex one piece socket
Steel sections from 1.2 to 3.0mm in thickness
Self-Drilling Screw
JT3 LT3 5.5 x 25
Self-Drilling Screw
Applications
Especially suited for fixing horizontal rail to vertical rail
Properties
Austenitic stainless steel fastener with carbon steel drillpoint
Low profile head to prevent interferencer
Unwashered
Technical specifications
Drive: 8mm clip hex one piece socket
Aluminium sections from 1.5 - 4.0mm in thickness
Self-Drilling Screw
JT4 4 4.8 x 19
Self-Drilling Screw
Applications
Especially suited for fixing aluminium rail to bracket
Properties
Fully A2 Austenitic Stainless Steel
Available unwashered
Technical specifications
Drive: 8mm clip hex one piece socket
Aluminium sections from 1.5 - 4.0mm in thickness

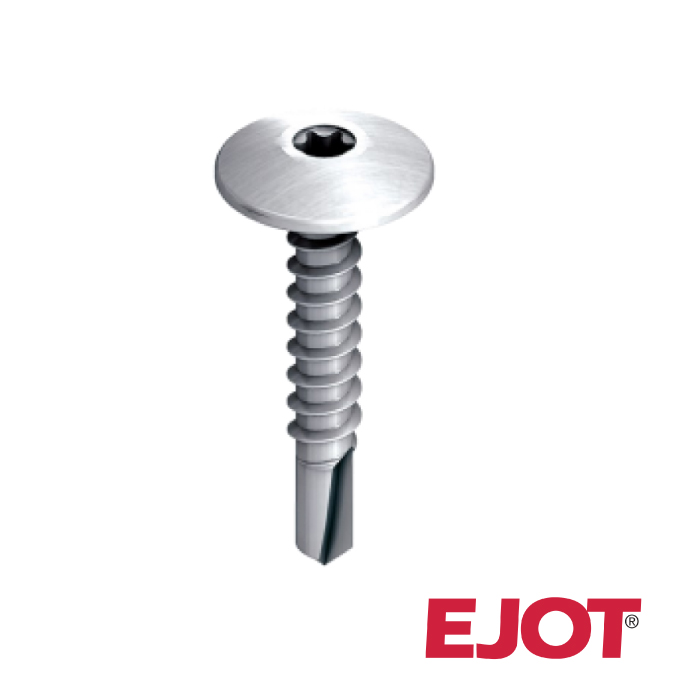

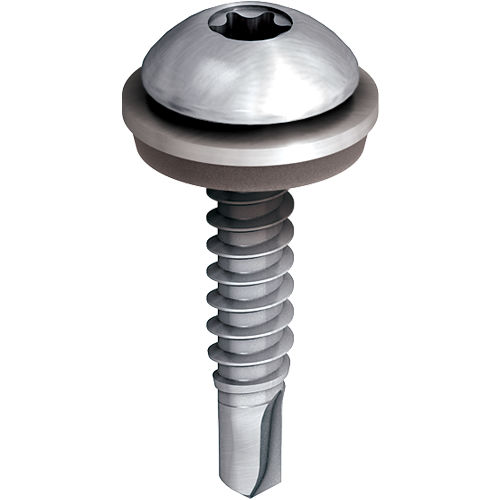

Self-Drilling Screw
JT4 FR 4 4.8
Self-Drilling Screw
Applications
Especially suited for fixing aluminium rail to bracket
Properties
Fully A2 Austenitic Stainless Steel
Available unwashered
Technical specifications
Drive: TORX® T25
Aluminium sections from 1.5 to 4.0mm in thickness
Low profile Dome head
