CMS04 - Multi Clips Cladding Support System
CMS04 - Multi Clips Cladding Support System

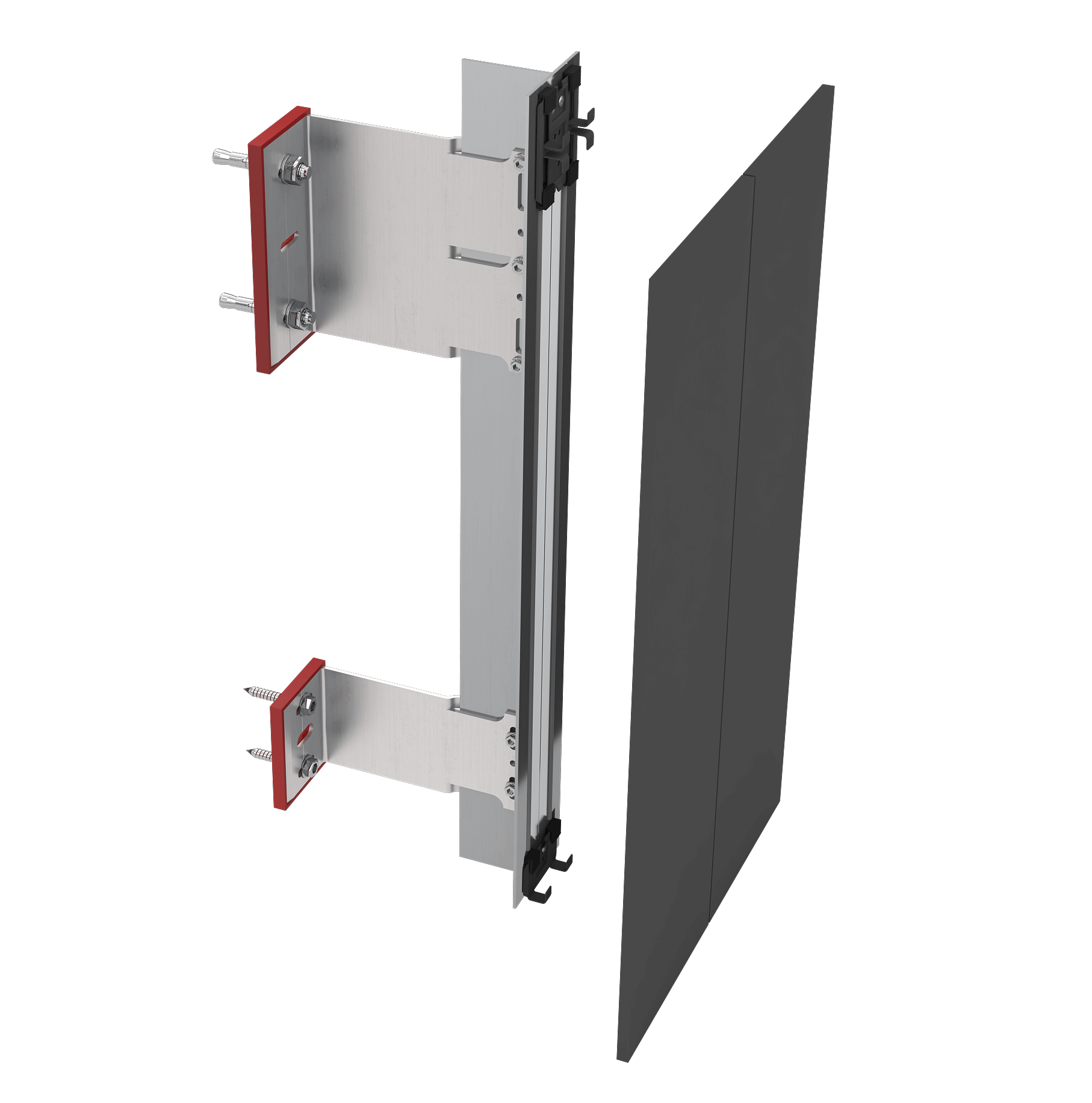

CMS04 is a system designed for the visible fixing of small format and lightweight cladding materials using multi clips. This system extends the Helping Hand Bracket and T/L Profile configuration. Multi clips are mounted on the T/L profiles to secure the panels in place. These multi clips can adapt to varying cladding thicknesses and can be coated in any RAL colour to match the respective panel colour.
Typical facade panel materials include Ceramic, Composite, Fibre Cement, HPL and Natural Stone Panels
Key Features and Benefits
- A1 rated Carrier System
- Suitable for buildings up to and over 18 meters
Technical Data
Overview

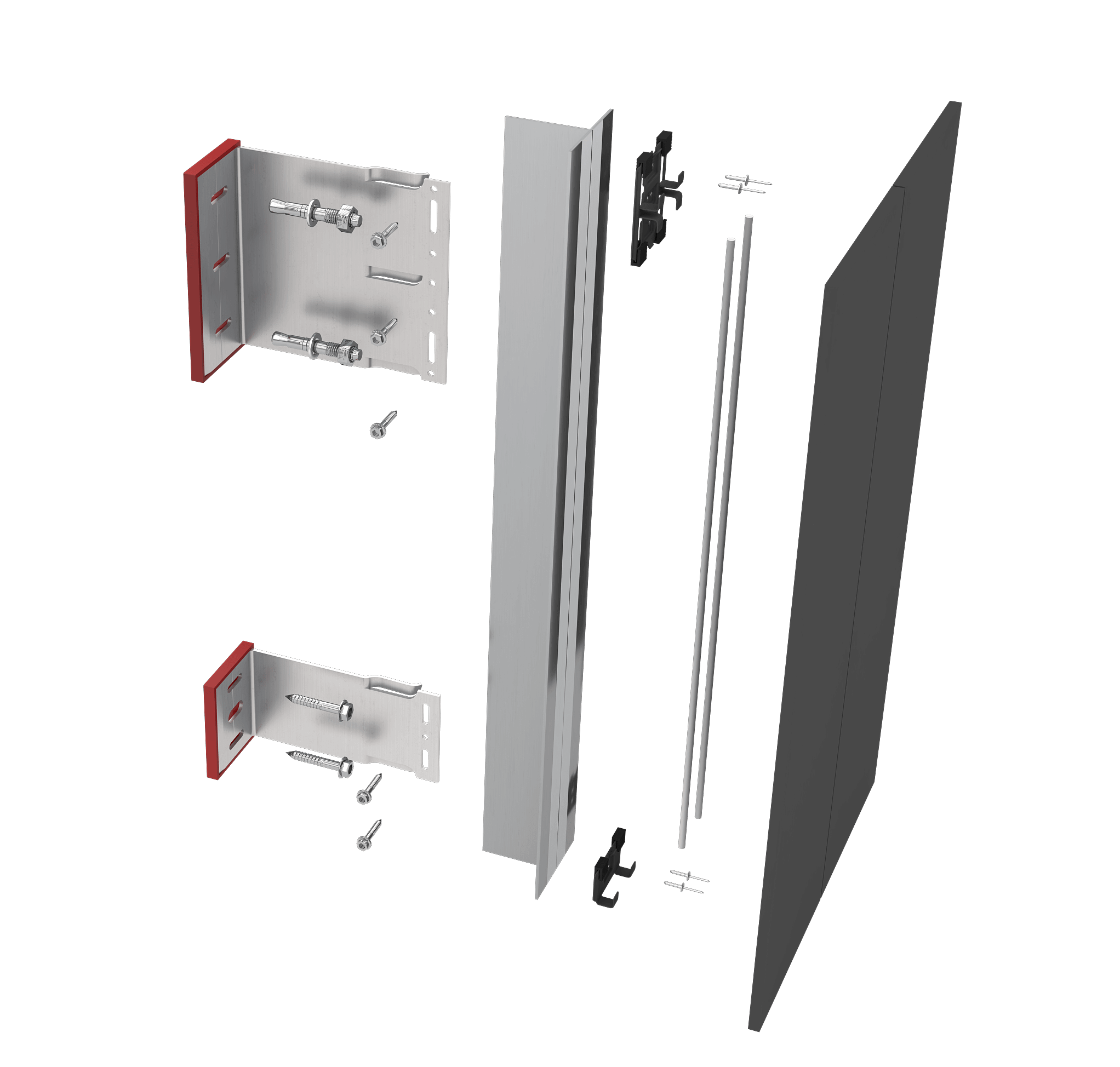

System Components
- Helping Hand Bracket
Cladmate Fortis Single and Double Bracket 40-300mm, Anodised 6063 T6 Aluminium/ Grade 316 Stainless Steel - Profile
Cladmate T/L/Corner Profiles in 6063 T6 Aluminium/ Grade 316 Stainless Steel - Fixings
EJOT fixings for timber/steel studwork, masonry, concrete, brickwork and blockwork substrates. - Quarter Visible Clips
- Top/Bottom Clip
- Rivet/Screw
- Cladding Panel
